Let’s Talk Valve Guides – A Hidden but Critical Failure Point in Polaris PRO-STAR Engines
At REV6, we’ve rebuilt thousands of Polaris PRO-STAR engines—from the 570cc all the way to the 1000cc—and one of the most common issues we encounter isn’t just worn pistons, bad rings, or scored cylinders. It’s something many riders overlook until it’s too late: valve guide failure, particularly on the exhaust side.
The Problem: Oil Consumption with No Warning Signs
If you’ve ever said:
- “My RZR keeps burning oil even after a top-end rebuild.”
- “I constantly have to add oil every ride, but there’s no smoke or visible leak.”
- “My engine locked up with no oil in it—and I never saw any signs.”
You’re not alone. These are the exact stories we hear every single day.
Many riders will do a full top-end rebuild—new piston, cylinder, rings, gaskets—expecting the problem to go away. But then the oil consumption continues, sometimes silently, until the engine fails again.
The culprit? Worn exhaust valve guides.
What Happens When Valve Guides Fail
Valve guides serve a critical role: they guide the valve stem and help control oil flow into the combustion chamber. Once the guides—especially on the exhaust side—wear out, they can no longer contain oil properly. That oil then bleeds into the combustion chamber, burning off silently, often without the traditional white smoke or visible warning.
Modern synthetic oils burn cleaner, so even severe oil consumption may not produce any visible smoke. By the time the issue becomes obvious, you could be running a full quart low—or worse.
Why the Exhaust Guides Are the Weak Link
Intake guides rarely fail. The exhaust side, however, sees extreme heat, pressure, and abuse—especially under hard use or high RPM conditions. Factory steel valve guides tend to:
- Expand and contract excessively with temperature swings
- Lose structural thickness under stress
- Lack of proper lubrication retention
- Wear out prematurely in high-load conditions
In short, they weren’t designed for the kind of punishment these engines often face.

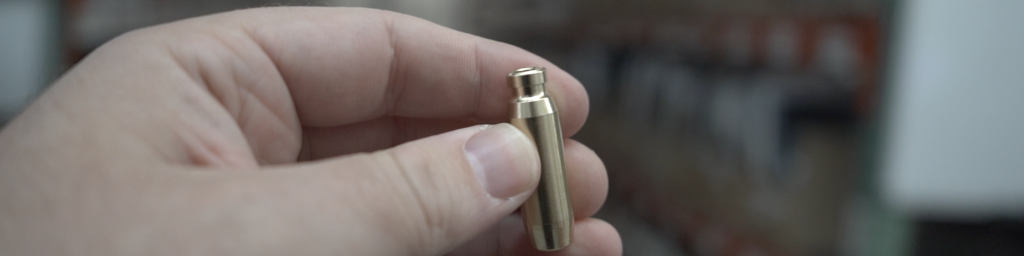

The REV6 Fix: Upgraded Manganese Bronze Valve Guides
To combat this issue, REV6 exclusively runs upgraded manganese bronze valve guides on the exhaust side. These aren’t your average replacements—they’re engineered for long-term durability under the harshest conditions.
Why Manganese Bronze?
- Better heat resistance: These guides hold their shape, even in extreme heat.
- Minimal thermal expansion: We can run them at tighter tolerances than factory, improving sealing and valve stability.
- Self-lubricating material: Bronze contains natural lubricity, reducing wear and friction without relying solely on oil.
- Increased wear resistance: These guides are far more durable at high RPM and high load than standard steel.
With these installed, your valve train stays more stable, more efficient, and better protected from oil loss or premature wear.
Signs It’s Time to Rebuild Your Head
Not sure if your engine needs a full cylinder head rebuild? Here are the most common signs of worn valve guides:
- Excessive oil consumption, but no external leaks
- Light smoke on cold starts or after throttle lift
- You’re frequently topping off oil, even when the engine “runs fine.”
- No white smoke—but oil is still disappearing
Again, modern synthetic oil burns clean, so don’t assume no smoke means no issue.
The Takeaway: Don’t Overlook the Cylinder Head
Before you decide to rebuild your top end due to oil loss or smoking, don’t stop at just the cylinder, piston, and rings. Get the head inspected and rebuilt properly—especially the exhaust valve guides. It will save you more time, frustration, and money than doing the job twice.
At REV6, we don’t just fix symptoms. We solve the problem the right way—from the inside out.
If you’re seeing these signs or are unsure whether your valve guides are the issue, reach out. We’re here to help make sure your rebuild lasts.
